PIUSI unidades de servicio

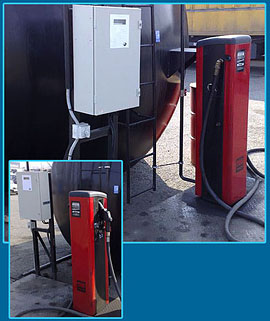

1. WT01 kútoszlop                          NEW PRODUCT

Oil and diesel transportation. Alkalmas a 2010. évi CXXIII. törvény alapján a kereskedelmi gázolaj 6.50 Forintos visszaigényléséhez.

Technical data:

• Flow capacity max.: 60l/min
• Discharge pressure: 1,8bar
• Voltage: 230V
• Power consumption: 2,4A
• Power: 0,37kW
• Torque: 1,25Nm
• Speed (rpm): 2800 1/min
• Digital display
• Password and PIN code fueling identification

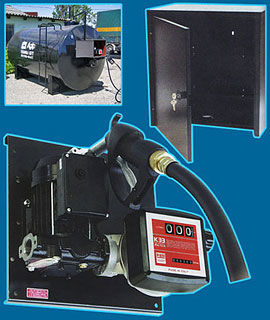

2. PIUSI ST 56 K33

Electric gas oil pump equipped with mechanic nozzle meter, set up on bracket-support.

• Petrol pump hose: 3/4" (4m)
• Pump: 230 V
• Power: 56 l/min (Panther 56)
• Measuring precision: +/-1%
• Pump nozzle: automatic
• Weight: 16 kg

3. PIUSI Metal BOX

Metal box which can be closed, to dispensers of gas oil of ST Type.

• Size: 564x308x582mm

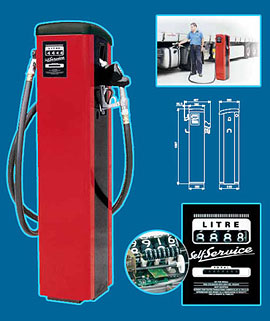

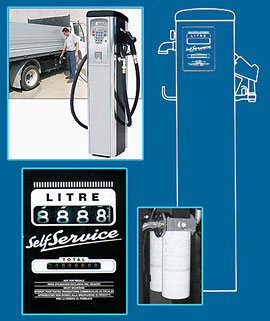

4. SELF SERVICE K44

Diesel fuel dispenser with conti- nuous operation.

Technical data:

• Voltage: 230V / 550W
• Quantity of delivery: 70-90 L/min
• Noise: less than 70dB
• Weight: 67Kg
• Height: 1387mm

Magyar fejlesztésű vezérlő, egyénre szabható szolgáltatásokkal.

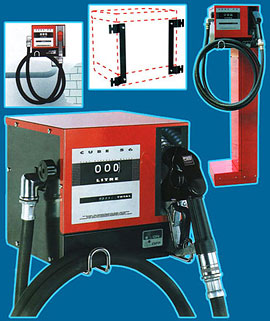

5. PIUSI CUBE 56 K33

Piusi electric gas oil pump equipped with nozzle meter, petrol pump hose and pump nozzle.

Technical data:

• Quantity of running: max. 56 L/min.
• Voltage: 230V/50Hz
• Power: 360 W
• Revolution/minute: 2800/min.
• Type of nozzle meter: K 33
• Pump nozzle: automatic
• Weight: 21Kg
• Size: 400x400x460mm

Optional accessories: support

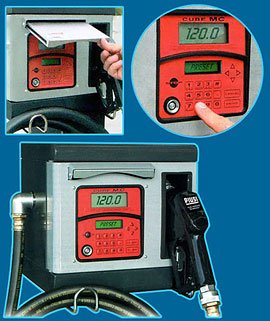

6. PIUSI CUBE 70 MC

CUBE 70 gas oil dispenser unit with box made of rustproof steel, electric pump, digital nozzle meter, automatic pump nozzle and 4 mm petrol pump hose.

Technical data:

• Voltage: 230 V/50 Hz
• Motor revolution/minute: 2800 /min
• Quantity of delivery: 70L/min
• Type of nozzle meter: K600
• Weight: 25Kg
• Size: 400x400x460mm

Optional accessories: support

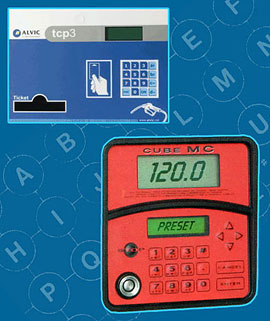

7.PIUSI SOFTWARE AND KEY KIT

Suitable for gas oil dispenser head unit of CUBE 70MC type.

Contents:

• 1 piece of main key
• 10 pieces of user's keys
• 1 piece of key identifying unit
• 1 software

Quantity of dispensed gas oil can be recorded on PC with date, quantity and place of dispensing by means of this system.

8.PIUSI INTERFACE AND SOFTWARE

PC fitting interface and software to CUBE 70MC type gas oil dispenser head unit, with its help you can record on PC quantity of dispensed gas oil with the optional key kit.
